CPN-04-4

Click image to enlarge
0.000
Quantity:

Panel Fastener, Plunger, Steel, Bright Nickel, Metric, CPN-04-4

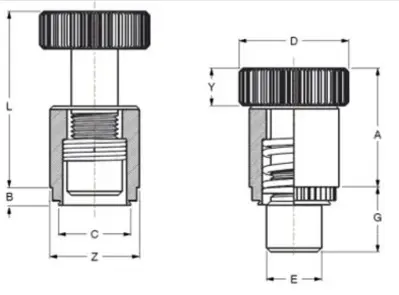

CPN_CPR

CPN-04-4 Specifications

  • Type: Metric
  • Thread Size: Unthreaded
  • Material: Steel, Heat Treated
  • Finish: Bright Nickel
  • Sheet Min.: 1.53
  • A: 15.11 ±0.25
  • Hole Diameter: 8.33 +0.08 -0.00
  • B: 10.92 ±0.13
  • C Max.: 8.31
  • D: 12.7 ±0.25
  • E: 6.35 +0.00 -0.13
  • G: 7.87 ±0.25
  • L Nom.: 22.73
  • Z: 10.3 ±0.25
  • Y: 4.32 ±0.25
  • CL to Edge Min.: 8.64
