CPFC21032-50

Click image to enlarge
0.000
Quantity:

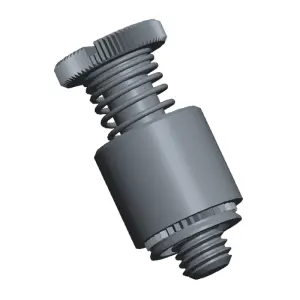

Panel Fastener, 300 Series Stainless Steel, Passivated, #10-32 x 0.312
cpfc2

CPFC21032-50 Specifications

  • Type: Unified
  • Thread Size: #10-32
  • Material: Stainless Steel, 300 Series
  • Finish: Passivated
  • Sheet Min.: 0.060
  • Hole Diameter: 0.344 +0.003 -0.000
  • A Max.: 0.450
  • B: 0.360 ±0.010
  • C Max.: 0.343
  • D: 0.406+0.016 -0.010
  • L: 0.250 ±0.016
  • CL to Edge Min.: 0.34
  • G: 0.312 ±0.016
  • P: 0.000 ±0.016
  • Y: 0.082 ±0.005
  • CRS Installation Force: 4000 lbs
  • CRS Push Out: 500 lbs
  • 5052 H34 Aluminum Installation Force: 3000 lbs.
  • 5052 H34 Aluminum Push Out: 400 lbs.
