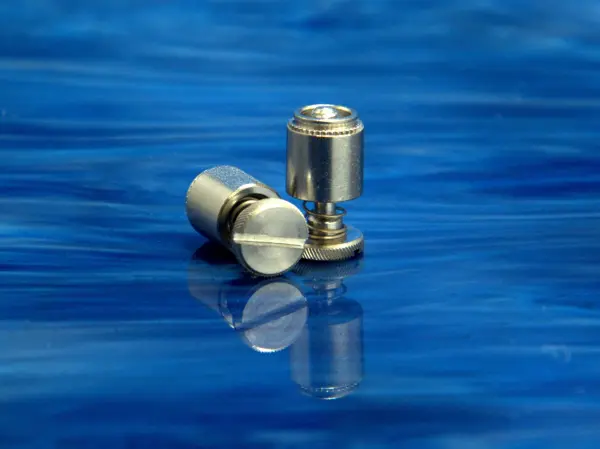

Self-Clinching Panel Fasteners - Series CPFC2

Click image to enlarge

Captive Fastener Brand of Self Clinching Panel fasteners provide a solution where design engineers want a spring loaded panel fastener assembly to be used in thin panels so that they are easily assembled, and removable in the assembly. The Captive Fastener self clinching panel fasteners are often used in access panels for electronic enclosures and in equipment consoles. The panel fasteners are available in 300 series stainless steel and are passivated to ASTM A967. The self clinching panel fasteners offer a low cost of installation and provide a strong reusable thread in sheets as thin as .060” / 1.53mm thick. For the self clinching spring loaded panel fasteners to be installed properly, the fasteners must be sufficiently harder than the panels into which they will be installed. The stainless steel plungers can be installed into steel or aluminum panels with a maximum hardness of HRB 70.

Self-Clinching Panel Fasteners - Series CPFC2 diagram

Access Panel Fastener Installation

The self clinching panel fasteners are to be installed into ductile material which allows for the metal into which the fastener is installed, to flow into the clinch profile of the standoff, and provide a permanent reusable thread in the assembly. Since the panel fasteners are captivated in the assembly there is no worry of losing the screws during servicing in the field. Each self clinching panel fastener is installed into the proper size hole in the mating panel and are then pressed into place using a squeezing force. The recommended hole sizes and suggested installation force is available in our catalog at www.captive-fastener.com. The CPFC2 Series of panel fasteners eliminate the possibility of loose hardware in the assembly which is a very important feature for design engineers particularly in electronic enclosures and cabinetry. When properly installed the self clinching panel fasteners provide excellent push out values that meet or exceed the industry standards. The performance values are readily available on our web site www.captive-fastener.com The panel fastener’s design allows the fastener to retain its dimensional integrity during the clinch process. The clinch fasteners, unlike a swage fastener or rivet, do not deform around the panel but the material in the panel flows around the clinch profile of the fastener.

The self clinching CPFC2 self clinching fasteners are REACH and RoHS compliant. If 2D or 3D prints are required they can be downloaded from our website.
