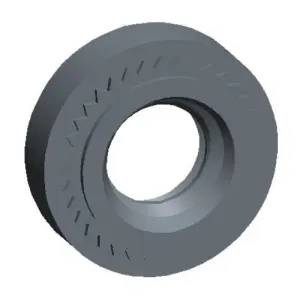

CM4-2

CM4-2 Specifications

• Type: Metric
• Thread Size: M4 x 0.7
• Material: Steel, Heat Treated
• Finish: Zinc Clear
• Sheet Min.: 1.400
• Hole Diameter: 5.41 +0.08 -0.00

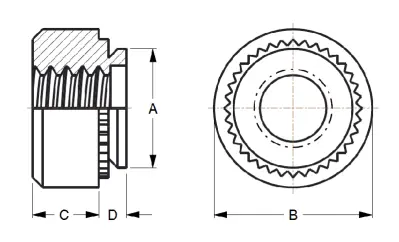

• A Max.: 5.38
• B: 7.87 ±0.25
• C: 2.00 ±0.25
• D Max.: 1.38
• CL to Edge Min.: 6.9
• CRS Installation Force: 18-27 kN
• CRS Push Out: 1250 N
• CRS Torque Out: 5.10 N-m
• 5052 H34 Aluminum Installation Force: 11.2-13.4 kN
• 5052 H34 Aluminum Push Out: 970 N
• 5052 H34 Aluminum Torque Out: 4.00 N-m
