CKNM4-1

Click image to enlarge
0.000
Quantity:

Nut, KAL-nut, Steel, Zinc Clear, Metric, M4x0.7 x 1
CKN

CKNM4-1 Specifications

  • Type: Metric
  • Thread Size: M4 x 0.7
  • Sheet Min.: 1.000
  • Material: Steel, Heat Treated
  • Finish: Zinc Clear
  • Hole Diameter: 5.50 +0.08 -0.00

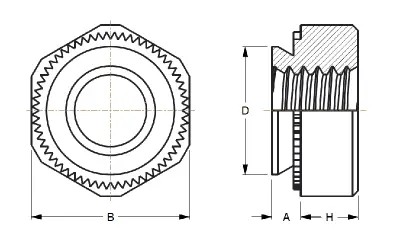

  • A Max.: 1.000
  • B: 7.00 +0.00 -0.20
  • D Max.: 5.45
  • H: 2.20 ±0.10
  • CL to Edge Min.: 5.5
  • CRS Installation Force: 12.7 kN
  • CRS Push Out: 580 N
  • CRS Torque Out: 2.94 N-m
  • 5052 H34 Aluminum Installation Force: 7.8 kN
  • 5052 H34 Aluminum Push Out: 390 N
  • 5052 H34 Aluminum Torque Out: 1.96 N-m
