CKFHM4-12

Click image to enlarge
0.000
Quantity:

Stud, Broaching, Phosphor Bronze CDA-510, Electro Tin, Metric, M4x0.7 x 12

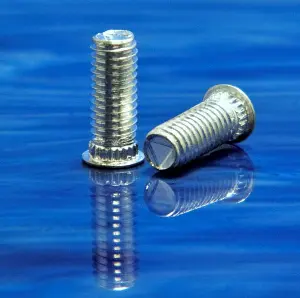

CKFH

CKFHM4-12 Specifications

  • Type: Metric
  • Thread Size: M4 x 0.7
  • Material: Phosphor Bronze, CDA-510
  • Finish: Electro Tin
  • Sheet Min.: 1.530
  • Hole Diameter: 4.2 +0.08 -0.00
  • D: 5.74 ±0.25
  • L: 12.00 ±0.25
  • CL to Edge Min.: 5.1
  • Max Size Clear Hole in Attached Parts: 4.8
  • Anvil Hole: 4.10 +0.08
  • Max Nut Tightening Torque: 1.60 N-m
  • .060in Fiberglass Installation Force: 1.80 kN
  • .060in Fiberglass Push Out: 355 N
  • .060in Fiberglass Torque Out: 1.80 N-m
