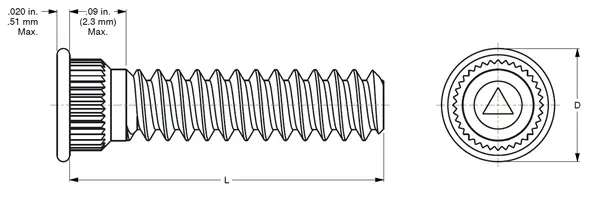

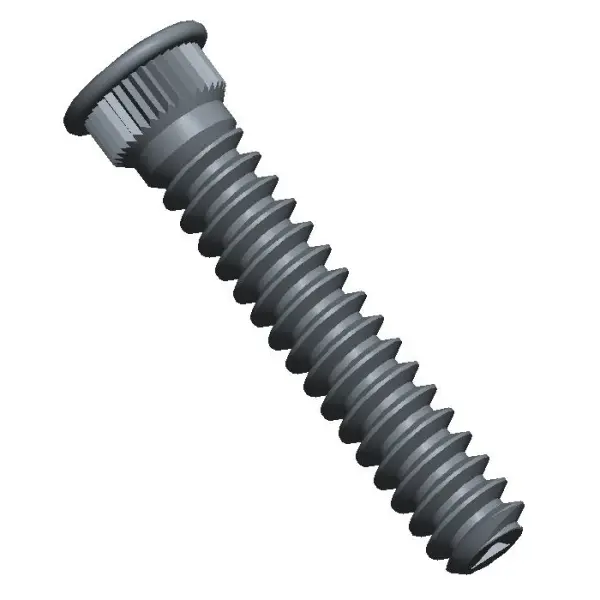

Broaching Studs - Series CKFH

Click image to enlarge

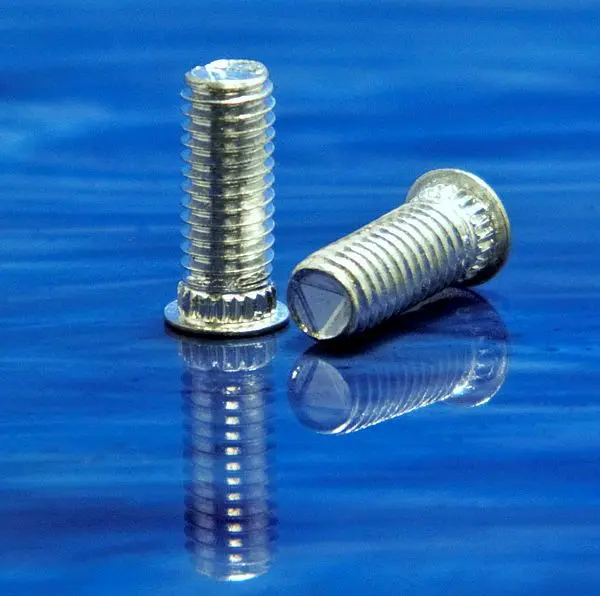

CKFH broaching-type studs are electroplated with tin so they are readily solderable. Thus, they can be used both as solderable connectors and as permanently mounted mechanical fasteners.

Thread: External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M).**
Use in: Materials with Rockwell Hardness of B-55 or less
