CHN273-12

Click image to enlarge
0.000
Quantity:

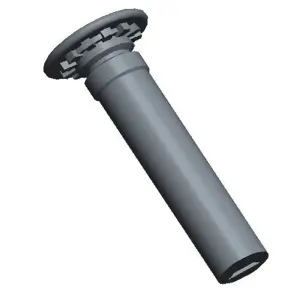

Pin, Non-Heat Treated Steel, Finish: Zinc, 0.273 x 0.750

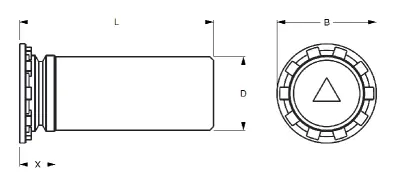

CH_CHN_CHS_CHA

CHN273-12 Specifications

  • Type: Unified
  • Thread Size: Unthreaded
  • Material: Steel, Non Heat Treated
  • Finish: Zinc Clear
  • Sheet Min.: 0.093
  • Hole Diameter: 0.312 +0.003 -0.000
  • B: 0.380 ±0.015
  • D: 0.273 ±0.002
  • L: 0.750 ±0.015
  • X Max.: 0.160
  • CL to Edge Min.: 0.38
