CHN106-20

Click image to enlarge
0.000
Quantity:

CH_CHN_CHS_CHA

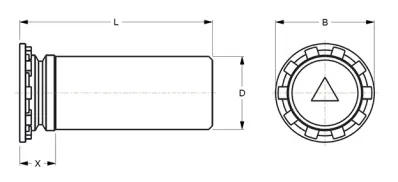

CHN106-20 Specifications

  • Sheet Min.: 0.040
  • Type: Unified
  • Hole Diameter: 0.125 +0.003
  • Thread Size: Unthreaded
  • Material: Steel, Heat Treated
  • Finish: Zinc Clear
  • B: 0.190 ±0.015
  • L: 1.250 ±0.015
  • D: 0.106 ±0.002
  • X Max.: 0.090
  • CL to Edge Min.: 0.22
