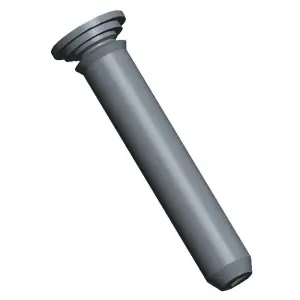

Tapered Guide Pin, 300 Series Stainless Steel, Passivated, Metric, 3 x 10 mm
CGS

CGS3MM-10 Specifications

  • Type: Metric
  • Thread Size: Unthreaded
  • Material: Stainless Steel, 300 Series
  • Finish: Passivated
  • Sheet Min.: 1.000
  • Hole Diameter: 3.5 +0.08 -0.00
  • B: 5.20 ±0.40
  • D: 3.00 ±0.05
  • G: 2.11 ±0.15
  • L: 10.0 ±0.4
  • X Max.: 2.29
  • CL to Edge Min.: 6.4
  • CRS Sheet Hardness: 65 HRB
  • CRS Installation Force: 22 kN
  • CRS Push Out: 0.98 kN
  • 5052 H34 Aluminum Sheet Hardness: 22 HRB
  • 5052 H34 Aluminum Installation Force: 12 kN
  • 5052 H34 Aluminum Push Out: 0.56 kN
