CFSPM5-2

Click image to enlarge
0.000
Quantity:

Nut, For SS, 17-4 Stainless Steel, Passivated, Metric, M5x0.8 x 2
CFSP

CFSPM5-2 Specifications

  • Type: Metric
  • Thread Size: M5 x 0.8
  • Material: Stainless Steel, Precipitation Hardened
  • Finish: Passivated
  • Sheet Min.: 1.400
  • Hole Diameter: 6.35 +0.08 -0.00

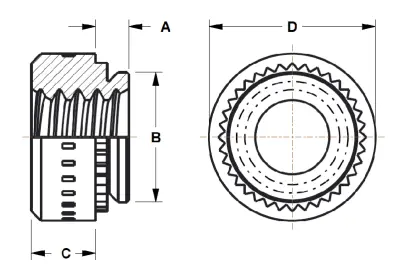

  • A Max.: 1.38
  • B Max.: 6.33
  • C: 2.00 ±0.25
  • D: 8.64 ±0.25
  • CL to Edge Min.: 7.1
  • 304SS Installation Force: 51.2 kN
  • 304SS Push Out: 1775 N
  • 304SS Torque Out: 6.77 N-m
