CFLM5-2

Click image to enlarge
0.000
Quantity:

Nut, Flush, 300 Series Stainless Steel, Passivated, Metric, M5x0.8 x 2

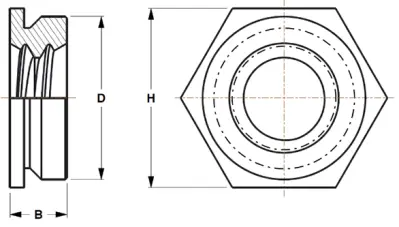

CFL_v1

CFLM5-2 Specifications

  • Type: Metric
  • Thread Size: M5 x 0.8
  • Material: Stainless Steel, 300 Series
  • Finish: Passivated
  • Sheet Min.: 2.32
  • Hole Diameter: 7.92 +0.08 -0.0
  • B Max.: 2.30
  • D Max.: 7.90
  • H Nom.: 8.7
  • CL to Edge Min.: 8.0
  • CRS Installation Force: 22 kN
  • CRS Push Out: 1068 N
  • Max Screw Torque: 0.88 N-m
  • 5052 H34 Aluminum Installation Force: 11.1 kN
  • 5052 H34 Aluminum Push Out: 1068 N
