CFLM2-1

Click image to enlarge
0.000
Quantity:

Nut, Flush, 300 Series Stainless Steel, Passivated, Metric, M2x0.5 x 1

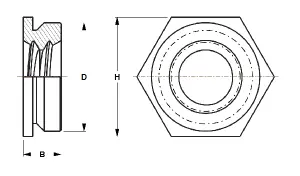

CFL_v2

CFLM2-1 Specifications

  • Type: Metric
  • Thread Size: M2 x 0.4
  • Material: Stainless Steel, 300 Series
  • Finish: Passivated
  • Sheet Min.: 1.53
  • Hole Diameter: 4.37 +0.08 -0.0
  • B Max.: 1.53
  • D Max.: 4.35
  • H Nom.: 4.8
  • CL to Edge Min.: 6.0
  • CRS Installation Force: 13.3 kN
  • CRS Push Out: 890 N
  • Max Screw Torque: 0.16 N-m
  • 5052 H34 Aluminum Installation Force: 8.9 kN
  • 5052 H34 Aluminum Push Out: 665 N
