CFEM5ML

Click image to enlarge
0.000
Quantity:

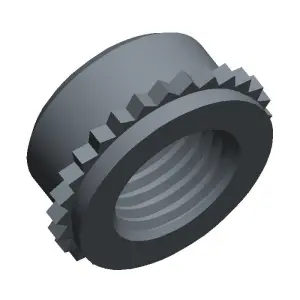

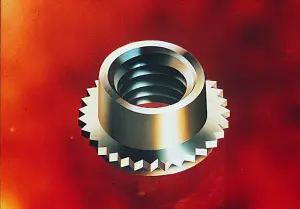

Nut, Self-Locking Thread, Stainless Steel, Black Dry Film Lubricant, Metric, M5x0.8
CFE_CFEO_CFEX_CFEOX 2D

CFEM5ML Specifications

  • Sheet Min.: 1.50
  • Type: Metric
  • Hole Diameter: 7.39 +0.08 -0.00
  • Thread Size: M5 x 0.8
  • Material: Stainless Steel, 300 Series
  • Finish: Black Dry Film Lubricant
  • A Max.: 6.48
  • B Max.: 7.37
  • C: 8.17 ±0.13
  • D Max.: 1.53
  • E: 3.05 +0.4
  • CL to Edge Min.: 5.2
  • Installation Sheet Thickness: 1.500 mm
  • CRS Installation Force: 11.1 N
  • 5052 H34 Aluminum Installation Force: 6.7 kN
  • CRS Push Out: 1601 N
  • CRS Torque Out: 5.42 N-m
  • 5052 H34 Aluminum Push Out: 1134 N
  • 5052 H34 Aluminum Torque Out: 5.42 N-m
