CFBSOS632-20

Click image to enlarge
0.000
Quantity:

Standoff, Blind Thread, 300 Series Stainless Steel, Passivated, 6-32 x 0.625
CFBSO_CFBSOA_CFBSOS

CFBSOS632-20 Specifications

  • Type: Unified
  • Material: Stainless Steel, 300 Series
  • Finish: Passivated
  • Thread Size: #6-32
  • Sheet Min.: 0.040
  • Hole Diameter: 0.213 +0.003 -0.000

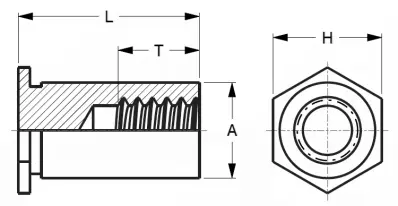

  • A: 0.212 +0.000 -0.005
  • H Nom.: 0.250
  • L: 0.625 +0.002 -0.005
  • T Min.: 0.250
  • CL to Edge Min.: 0.27
  • .060in CRS Push Out: 420 lbs
  • .060in CRS Torque Out: 35 in-lbs
  • Max Nut Tightening Torque: 7 in-lbs
  • .060in CRS Installation Force: 3300 lbs
  • .060in CRS Pull Through: 304 lbs
  • .060in 5052 H34 Aluminum Installation Force: 1700 lbs
  • .060in 5052 H34 Aluminum Push Out: 300 lbs
  • .060in 5052 H34 Aluminum Torque Out: 25 in-lbs
  • .060in 5052 H34 Aluminum Pull Through: 248 lbs
