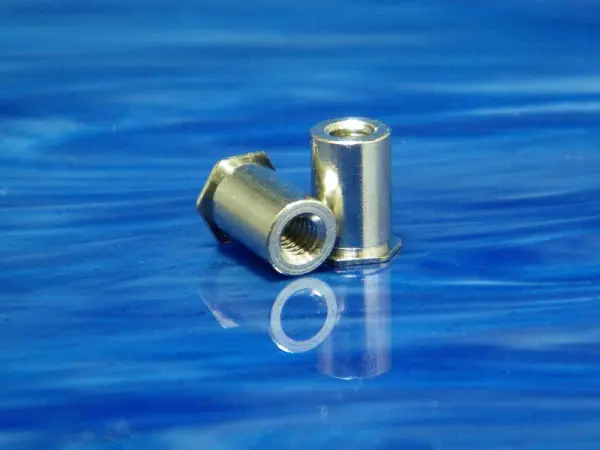

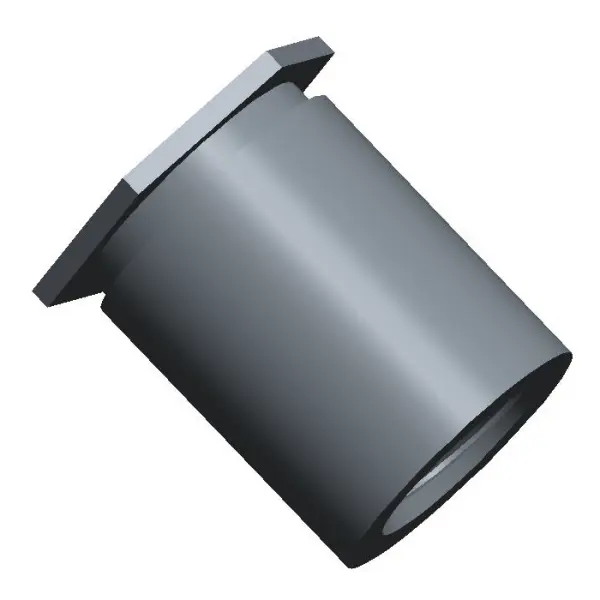

Self-Clinching Blind Threaded Standoffs - Series CFBSO, CFBSOS, CFBSOA

Click image to enlarge

Self clinching standoffs provide a solution where design engineers need to space panels and components in their metal enclosures. The standoffs are available in steel, stainless steel, and aluminum depending on the needs of the engineer. The standoffs are available in both blind thread, where the design calls for the standoff to be installed in the exterior of the enclosure, and a smooth outer appearance is required and are also available in a through hole design. The self clinching standoffs provide a low cost of installation and provide a strong reusable thread in sheets as thin as .040” thick. For the self clinching standoffs to be installed properly, the fasteners must be sufficiently harder than the panels into which they will be installed. The steel standoffs can be installed into steel or aluminum panels with a maximum hardness of HRB 80. The stainless steel standoffs can be installed into steel or aluminum panels with a maximum hardness of HRB 70 or less.

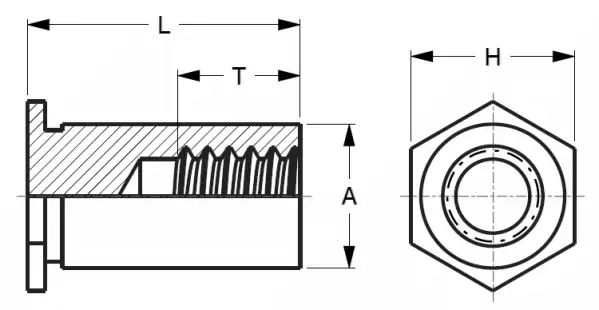

CFBSO_CFBSOA_CFBSOS


Blind Self Clinching Threaded Standoffs Installation

The self clinching standoffs are to be installed into ductile material which allows for the metal into which the fastener is installed, to flow into the clinch profile of the standoff, and provide a permanent reusable thread in the assembly. Each self clinching standoff is installed into the proper size hole in the mating panel and are then pressed into place using a squeezing force. The recommended hole sizes and suggested installation force is available in our catalog. The standoff eliminates the possibility of loose hardware in the assembly which is a very important feature for design engineers particularly in electronic enclosures and cabinetry. When properly installed the self clinching standoffs provide excellent push out and torque out values that meet or exceed the industry standards. The performance values are readily available on our web site www.captive-fastener.com The standoffs design allows the fastener to retain its dimensional integrity during the clinch process. The clinch fasteners, unlike a swage fastener or rivet, do not deform around the panel but the material in the panel flows around the clinch profile of the fastener. The self clinching standoffs are REACH and RoHS compliant. If 2D or 3D prints are required they can be downloaded from within our website on the product pages.
