CFA-1-832-16

Click image to enlarge
0.000
Quantity:

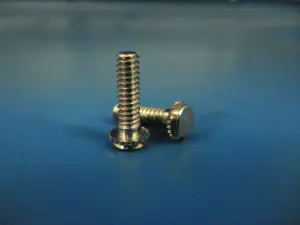

Stud, Concealed Head, 2024-T4 Aluminum, 8-32 x 1

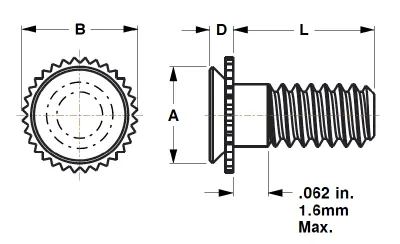

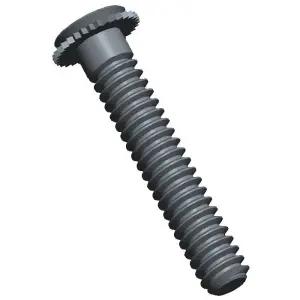

CFA-1_CFA-2_CFC-1_CFC-2 2D

CFA-1-832-16 Specifications

  • Type: Unified
  • Thread Size: #8-32
  • Material: Aluminum, 2024-T4
  • Finish: None
  • Sheet Min.: 0.062
  • Hole Diameter: 0.290 +0.003 -0.000
  • A Max.: 0.289
  • B: 0.328 ±0.010
  • D Max.: 0.041
  • L: 1.000 ±0.015
  • CL to Edge Min.: 0.219
  • Depth of Blind Hole: 0.043
  • CRS Installation Force: N/A
  • Max Nut Tightening Torque: 10.80 in-lbs.
  • 5052 H34 Aluminum Installation Force: 2800 lbs.
  • Max Hole in Attached Parts: 0.185
  • CRS Pull Out: N/A
  • 5052 H34 Aluminum Pull Out: 145 lbs.
