CF40S-440-.275

Click image to enlarge
0.000
Quantity:

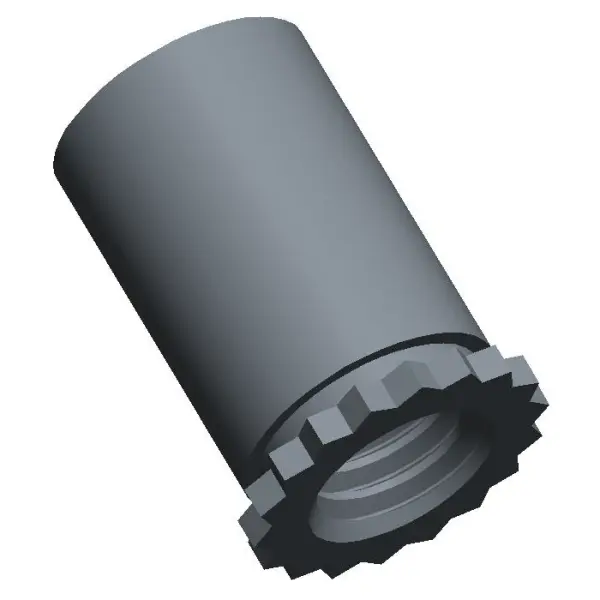

Standoff, Miniature, 300 Series Stainless Steel, Passivated, #4-40 x .275
CF40_CF40S 2D

CF40S-440-.275 Specifications

  • Type: Unified
  • Thread Size: #4-40
  • Material: Stainless Steel, 300 Series
  • Finish: Passivated
  • Sheet Range: 0.037 -0.250
  • Hole Diameter: 0.166 +0.003 -0.000
  • A Max.: 0.165
  • H Nom.: 0.194
  • L: 0.275 +0.002 -0.005
  • CL to Edge Min.: 0.126
  • .040in CRS Installation Force: 1300 lbs
  • .040in CRS Push Out: 75 lbs
  • .040in CRS Torque Out: 10 in-lbs
  • .040in CRS Rec Tightening Torque: 3.8 in-lbs
  • .040in 5052-H34 Aluminum Max Tightening Torque: 3.8 in-lbs
  • .040in 5052-H34 Aluminum Installation Force: 1000 lbs
  • .040in 5052-H34 Aluminum Push Out: 50 lbs
  • .040in 5052-H34 Aluminum Torque Out: 10 in-lbs
