CRM-256-4

Click image to enlarge
0.000
Quantity:

Nut Spacer, Reel Mounted, Steel, Finish:Electro Tin, #2-56 x 0.125

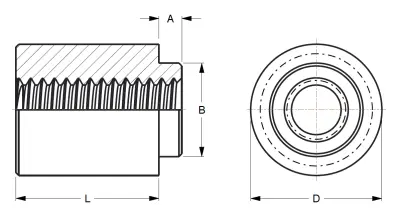

CRM 2D

CRM-256-4 Specifications

  • Type: Unified
  • Thread Size: #2-56
  • Material: Steel
  • Finish: Electro Tin
  • Sheet Min.: 0.060
  • Hole Diameter: 0.147 +0.003 -0.000
  • A Max.: 0.060
  • B Max.: 0.142
  • D: 0.219 ±0.005
  • L: 0.125 ±0.005
  • Solder Pad Diameter Min.: 0.244
  • Pieces/Reel: 1000
