CFSOAG8632-4

Click image to enlarge
0.000
Quantity:

Standoff, Self-Grounding, 7075-T6 Aluminum, 6-32 x0.125
CFSOSG_CFSOAG

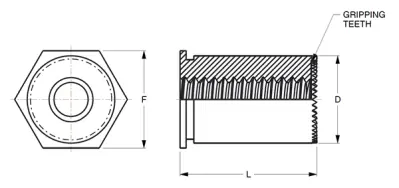

CFSOAG8632-4 Specifications

  • Type: Unified
  • Thread Size: #6-32
  • Material: Aluminum, 7076-T6
  • Finish: None
  • Sheet Min.: 0.050
  • Hole Diameter: 0.281 +0.003 -0.000
  • L: 0.125 +0.010 -0.000
  • F Nom.: 0.312 ±0.005
  • D: 0.280 +0.000 -0.005
  • CL to Edge Min.: 0.31
  • 5052 H34 Aluminum Installation Force: 1700 lbs
  • 5052 H34 Aluminum Push Out: 400 lbs
  • 5052 H34 Aluminum Torque Out: 45 in-lbs
