CFSKC61.5-10

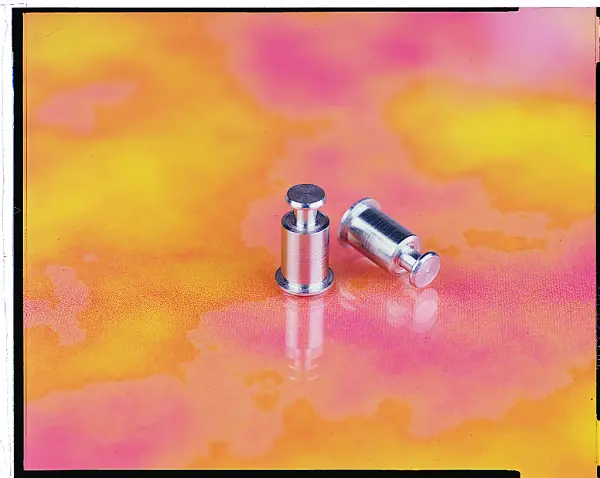

Click image to enlarge
0.000
Quantity:

Standoff, Slide Top, 300 Series Stainless Steel, Passivated, Metric, 61.5 x 10

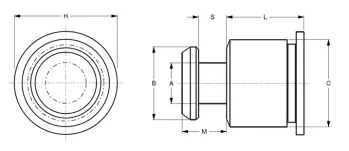

CFSKC 2D

CFSKC61.5-10 Specifications

  • Type: Metric
  • Thread Size: Unthreaded
  • Material: Stainless Steel, 300 Series
  • Finish: Passivated
  • Sheet Min.: 1.020
  • Hole Diameter: 5.41 +0.08 -0.00
  • L: 10.00 ±0.13
  • A: 2.51 ±0.08
  • B: 4.50 ±0.08
  • C Max.: 5.39
  • H Nom.: 6.35
  • M Max.: 2.75
  • S: 1.73 ±0.08
  • CL to Edge Min.: 6.6
  • Anvil Hole: 5.49 +0.08
  • 1.520mm CRS HRB64 Installation Force: 14.2 kN
  • 1.520mm CRS HRB64 Push Out: 2600 N
  • 1.520mm 5052 H34 Aluminum Intallation Force: 7.1 kN
  • 1.520mm 5052 H34 Aluminum Push Out: 1100 N
