CFH420

Click image to enlarge
0.000
Quantity:

Nut, Heavy Duty, Steel, Heat Treated Zinc Clear, 1/4-20

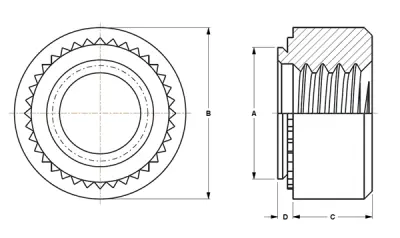

CFH_CFHN 2D

CFH420 Specifications

  • Sheet Min.: 0.058
  • Type: Unified
  • Hole Diameter: 0.344 +0.005 -0.00
  • Thread Size: 1/4-20
  • Material: Steel, Heat Treated
  • Finish: Zinc Clear
  • A Max.: 0.343
  • C: 0.189 ±0.005
  • D Max.: 0.058
  • B: 0.500 ±0.010
  • CL to Edge Min.: 0.38
  • .060in CRS Installation Force: 4800 lbs
  • .062in Aluminum Installation Force: 3500 lbs
  • .060in CRS Push Out: 450 lbs
  • .062in Aluminum Push Out: 370 lbs
  • .060in CRS Torque Out: 120 in-lbs
  • .062in Aluminum Torque Out: 110 in-lbs
