CFBS440-1

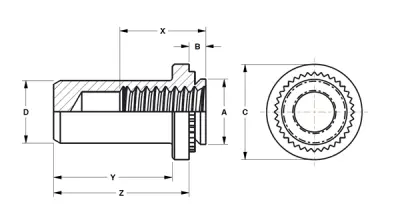

CFBS440-1 Specifications

• Type: Unified
• Thread Size: #4-40
• Material: Stainless Steel, 300 Series
• Finish: Passivated
• Sheet Min.: 0.040
• Hole Diameter: 0.166 +0.003 -0.00
• A Max. Shank Dia.: 0.165
• B Max.: 0.038
• C: 0.250 ±0.010
• D Max. Barrel Dia.: 0.150
• X Min. Depth Full Thread: 0.21
• Y Max.: 0.335
• Z: 0.380 ±0.010
• CL to Edge Min.: 0.19
• CRS Installation Force: 2500 lbs
• CRS Push Out: 125 lbs
• 5052 H34 Aluminum Installation Force: 1600 lbs
• 5052 H34 Aluminum Push Out: 90 lbs
• CRS Torque Out: 13 in-lbs
• 5052 H34 Aluminum Torque Out: 10 in-lbs
