CFBS420-2

Click image to enlarge
0.000
Quantity:

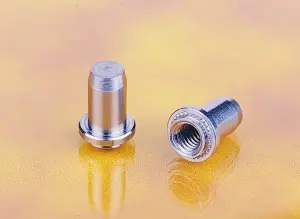

Nut, Blind, 300 Series Stainless Steel, Passivated, 1/4-20 x 2
CFB_CFBS 2D

CFBS420-2 Specifications

  • Type: Unified
  • Thread Size: 1/4-20
  • Material: Stainless Steel, 300 Series
  • Finish: Passivated
  • Sheet Min.: 0.090
  • Hole Diameter: 0.344 +0.003 -0.00
  • A Max. Shank Dia.: 0.343
  • B Max.: 0.087
  • C: 0.430 ±0.010
  • D Max. Barrel Dia.: 0.305
  • X Min. Depth Full Thread: 0.31
  • Y Max.: 0.500
  • Z: 0.560 ±0.010
  • CL to Edge Min.: 0.34
  • CRS Installation Force: 6000 lbs
  • CRS Push Out: 400 lbs
  • 5052 H34 Aluminum Installation Force: 4000 lbs
  • 5052 H34 Aluminum Push Out: 315 lbs
  • CRS Torque Out: 105 in-lbs
  • 5052 H34 Aluminum Torque Out: 90 in-lbs
