CFAC420-2

Click image to enlarge
0.000
Quantity:

Nut, Floating, 300 Series Stainless Steel, Passivated, 1/4-20 x 2
CFAS_CFAC

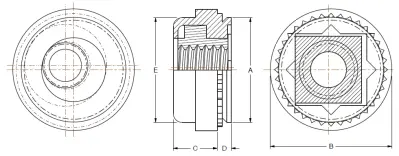

CFAC420-2 Specifications

  • Sheet Min.: 0.054
  • Type: Unified
  • Hole Diameter: 0.515 +0.003 -0.00
  • Thread Size: 1/4-20
  • Material: Stainless Steel, 300 Series
  • Finish: Passivated
  • A Max.: 0.514
  • B: 0.600 ±0.015
  • C Max.: 0.21
  • D Max.: 0.054
  • E Max.: 0.510
  • CL to Edge Min.: 0.42
  • 2024 T3 Installation Force: 5000 lbs
  • CRS Installation Force: 5000 lbs
  • 5052 H34 Aluminum Installation Force: 3000 lbs
  • 2024 T3 Push Out: 300 lbs
  • CRS Push Out: 500 lbs
  • 2024 T3 Torque Out: 325 in-lbs
  • 5052 H34 Aluminum Push Out: 400 lbs
  • CRS Torque Out: 325 in-lbs
  • 5052 H34 Aluminum Torque Out: 325 in-lbs
