CF4-SO8632-26


0.000
Quantity:

Standoff, Thru Threaded For SS Sheets, 400 Series Stainless Steel, Passivated, 6-32 x 0.812

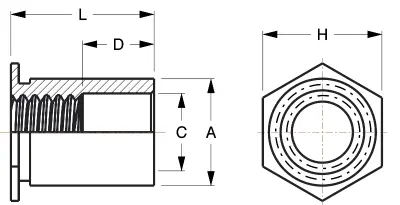

CF4_SO

CF4-SO8632-26 Specifications

  • Type: Unified
  • Thread Size: #6-32
  • Material: Stainless Steel, 400 Series
  • Finish: Passivated
  • Sheet Min.: 0.050
  • Hole Diameter: 0.281 +0.003 -0.000
  • A: 0.280 +0.000 -0.005
  • L: 0.812 +0.002 -0.005
  • H Nom.: 0.312
  • C: 0.156 ±0.005
  • D: 0.312 ±0.010
  • CL to Edge Min.: 0.31
  • .050in SS Installation Force: 10500 lbs
  • .050in SS Torque Out: 71 in-lbs
  • .050in SS Push Out: 900 lbs
  • .050in SS Pull Through: 1392 lbs
  • .050in SS Recommended Tightening Torque: 8.75 in-lbs
