Self-Clinching Male Standoffs - Series CFMS, CFMSS

Click image to enlarge

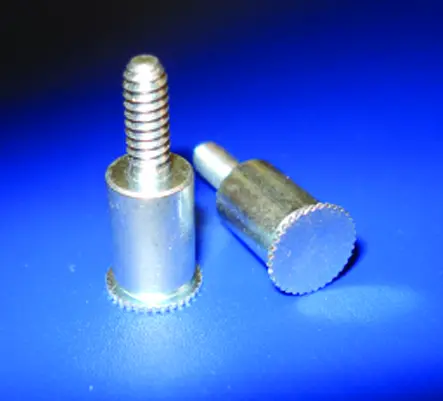

CFMS Standoffs provide a permanently captivated fastener with a reusable threaded post to mount PC boards and other components in electronic displays. The unique part is available in heat-treated and zinc plated steel or passivated stainless steel and can be installed into metal sheets as thin as .050 in (1.27 mm) thick.

Thread: External 2A, ANSI B1.1 (6g, ANSI/ASME B1.13M).*
Use in: CFMS for materials with HRB-80 or less.
 CFMSS for materials with HRB-70 or less.

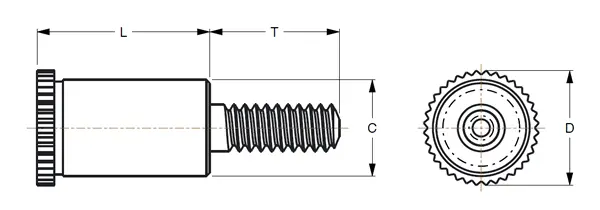

CFMS 2D
