Broaching Spring Top Standoff for PC Boards - Series CFKSSB

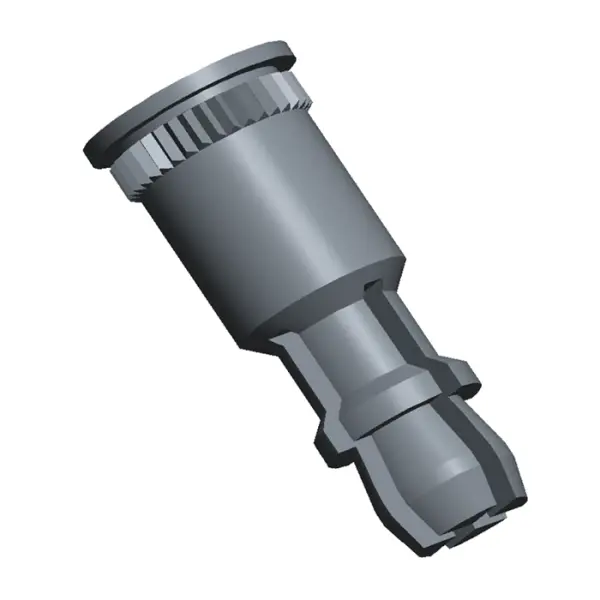

Click image to enlarge

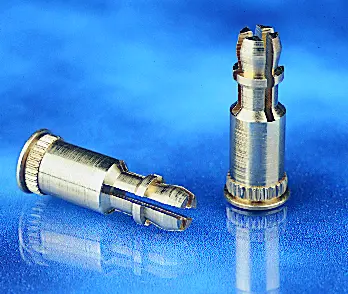

The Captive Fastener brand of Spring Top Standoffs Specifically designed for PC Boards:

Provide an excellent method of reducing assembly and disassembly time in an electronic enclosure with PC Boards. The cross slotted Spring Action post, provides quick attachment and removal with a simple snap on and off, which both speeds up assembly time and eliminates loose hardware. These CFKSSB Series of Spring-Top Standoff fasteners are available in CDA 360 Brass. The CFKSSB series are available in assorted lengths to fit the particular need in the chosen design. The CFKSSB series (Brass) are generally supplied in the plain finish. These fasteners are available in both inch and metric dimensions.

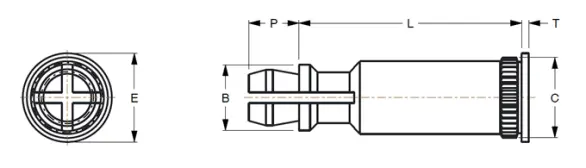

Broaching Spring Top Standoff for PC Boards - Series CFKSSB diagram

Proper Installation of Spring Top Standoffs for PC Boards:

The fasteners are made to be broached into PC Boards. The Spring Top Standoffs are installed into a pre- drilled hole in the printed circuit board. The thickness range of the PC Boards must be .040” / .070” 1-1.8mm thick. The maximum hardness of the PC Board is to be no greater than HRB 65. The proper mounting hole is available in our catalog in the Dimensions & Specifications section.

The removable top panel has no hardness requirements and the thickness range of the removable panel is listed in the Installation & Performance section of our catalog as well as the recommended installation force to properly seat the fasteners in the metal panel.

These fasteners are RoHS and REACH compliant and many lengths are available from stock in both inch and metric sizes. The CFKSSB Series is generally supplied a plain finish but special plating is available upon request. If 2D or 3D prints are required they are available on our product pages within the website.
